RF67-XFC Ultra High Pressure SS Hose
Product type: Super Ultra High Pressure RF67-XFC
RF67-XFC manufactured in helical construction with close pitch corrugated flexible metallic hose in 321 stainless steel. This product uses ultra-heavy weight stainless steel with multiple layers of braid wire in 321 stainless steel. RF67-XFC can be used in hydraulic applications to withstand varying high temperatures with high pressures, this construction of hose is reliable and durable which gives you piece of mind in operation. This Ultra High Pressure Hose is only available as a completed assembly as we can assure a validated assembly which can be used immediately. The test pressure is carried out to one and a half times the working pressure of the hose or the fitting (Which ever one is the least).
- Cryogenic to 815 °C (1500 °F)
- Maximum working pressure of 827 bar (12,000 psi) in ¼ “, to 207 bar (3000 psi) in 3” diameter.
- Full vacuum
- For severe hydraulic applications
- Available in exotic materials for higher working pressures.

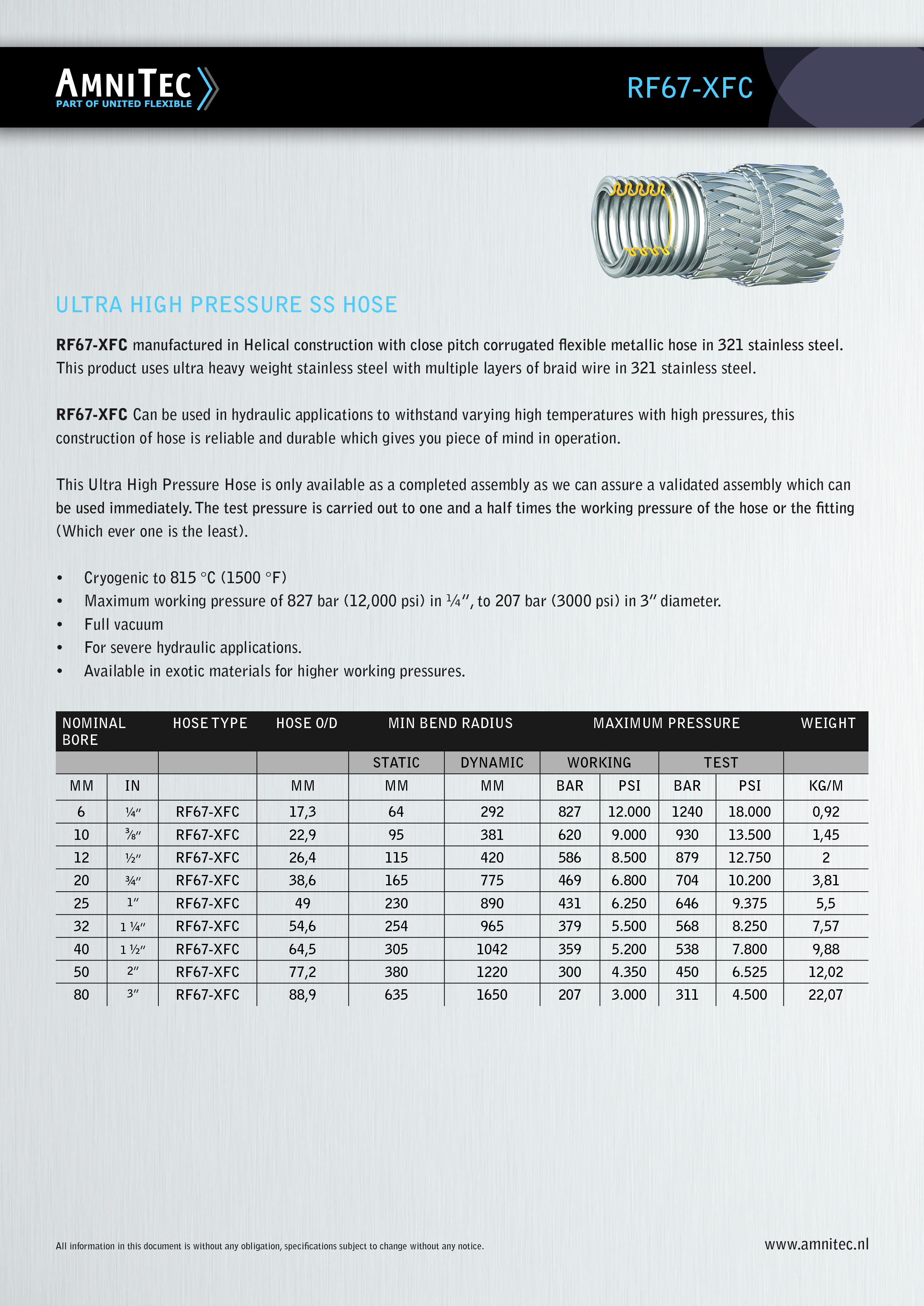

RF67-XFC Ultra High Pressure SS Hose Productsheet Data
| Nominal Bore | Hose Type | Hose O/D | Min Bend Radius | Maximum Pressure | Weight |
| Static | Dynamic | Working | Test | |||||||
| MM | IN | MM | MM | MM | BAR | PSI | BAR | PSI | KG/M | |
| 6 | ¼” | RF67-XFC | 17,3 | 64 | 292 | 827 | 12.000 | 1240 | 18.000 | 0,92 |
| 10 | ⅜” | RF67-XFC | 22,9 | 95 | 381 | 620 | 9.000 | 930 | 13.500 | 1,45 |
| 12 | ½” | RF67-XFC | 26,4 | 115 | 420 | 586 | 8.500 | 879 | 12.750 | 2 |
| 20 | ¾” | RF67-XFC | 38,6 | 165 | 775 | 469 | 6.800 | 704 | 10.200 | 3,81 |
| 25 | 1” | RF67-XFC | 49 | 230 | 890 | 431 | 6.250 | 646 | 9.375 | 5,5 |
| 32 | 1 ¼” | RF67-XFC | 54,6 | 254 | 965 | 379 | 5.500 | 568 | 8.250 | 7,57 |
| 40 | 1 ½” | RF67-XFC | 64,5 | 305 | 1042 | 359 | 5.200 | 538 | 7.800 | 9,88 |
| 50 | 2” | RF67-XFC | 77,2 | 380 | 1220 | 300 | 4.350 | 450 | 6.525 | 12,02 |
| 80 | 3” | RF67-XFC | 88,9 | 635 | 1650 | 207 | 3.000 | 311 | 4.500 | 22,07 |
